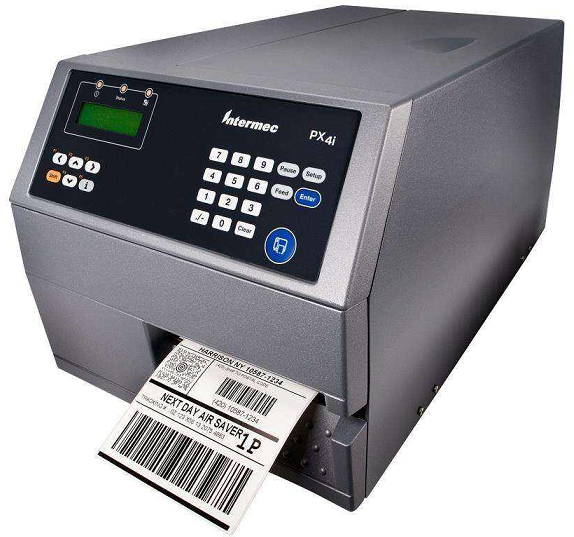

PX6i 和 PX4i 工业打印机
该紧固耐用的 PX6i 和 PX4i 高性能工业打印机专为全天候、关键任务的工作流程而设计，其结合了高密度打印和高级连接，确保现在快速的结果和长期可扩展的解决方案。
该智能打印机可脱离 PC 独立使用，直接控制扫描仪、秤和应用程序，减少了错误和工作流程。提高了效率，减少了基础设施成本和复杂性。
设备管理和诊断功能减少停机时间，更易于部署，同时，用户可选、独立编程语言确保 PX 易于融入打印机环境。
耐用、全金属 PX 打印机是严格的合规标签应用的理想选择，并自始至终提供高达 228 mm/s (9 ips) 的杰出性能。模块化设计可集成至自动标签工作流程，工业标准连接选择支持快速部署。
选项和配件增强灵活性。强化版自带选项可在多种介质类型之间提供一致的性能。由于磁性 QuickMount? 设计，可快速轻松替换打印头。
PX 系列打印机与霍尼韦尔介质产品配合设计和测试，确保在使用霍尼韦尔介质正品时实现最优的打印头性能。
MECHANICAL
Dimensions (HxWxD):
PX4i: 482 mm X 238 mm X 275 mm (19.0 in X 9.4 in X 10.8 in)
PX6i: 482 mm X 238 mm X 335 mm (19.0 in X 9.4 in X 13.2 in)
Weight:
PX4i:12.85 kg (28.4 lbs)
PX6i: 14.80 kg (32.6 lbs)
ENVIRONMENTAL
Operating Temperature:
PX4i: +5°C to +40°C (+41°F to +104°F)
PX6i: +5°C to +40°C (+41°F to +104°F)
Storage Temperature
PX4i: -20°C to +70°C (-4°F to +152°F)
PX6i: -20°C to +70°C (-4°F to +152°F)
Humidity:
PX4i:10-90% RH non-condensing
PX6i:10-90% RH non-condensing
MEMORY
Standard:
PX4i: 16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
PX6i: 16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Optional:
PX4i: 1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
PX6i: 1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
POWER
Input:
PX4i: 90-265 VAC, 45-65 Hz
PX6i: 90-265 VAC, 45-65 Hz
Consumption:
PX4i: Standby 20W; Continuous average 125W; Peak 400W
PX6i: Standby 20W; Continuous average 125W; Peak 400W
PRINT SPECIFICATIONS
Max Width:
PX4i: 112 mm (4.4 in) - DT 110 mm (4.3 in) – TT
PX6i: 167.4 mm (6.59 in)
Max Length:
PX4i: 4095 mm (161 in) at 203 dpi 2775 mm (109 in) at 300 dpi 1016 mm (40 in) at 406 dpi
PX6i: 4095 mm (161 in) at 203 dpi 2775 mm (109 in) at 300 dpi4
Max Label Width:
PX4i: 120 mm (4.72 in)
PX6i: 170 mm (6.69 in)
Thickness:
PX4i: 2.4 to 10 mil
PX6i: 2.4 to 10 mil
Style:
PX4i: Roll-fed or fanfold
PX6i: Roll-fed or fanfold
Label Roll Max Diameter:
PX4i: 213 mm (8.38 in)
PX6i: 213 mm (8.38 in)
Label Roll Core:
PX4i:38-76 mm (1.5-3.0 in)
PX6i; 38-76 mm (1.5-3.0 in)
Resolution:
PX4i: 8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi) 16 dots/mm (406 dpi)
PX6i: 8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi)
Print Speed:
PX4i: 100 - 300 mm/s (4 - 12 ips) for 203/300dpi 100 – 250 mm/s (4 – 10 ips) for 406 dpi
PX6i: 100 - 225 mm/s (4 - 9 ips) for 203/300dpi
Media Type:
PX4i: Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.
PX6i: Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID
INTERFACE
Standard:
PX4i: ? Ethernet 10/100 Mbps ? RS-232, up to 115.2 kB/s ? Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS ? IPL: XON/XOFF, Intermec Std. Protocol ? USB 2.0
PX6i: ? Ethernet 10/100 Mbps ? RS-232, up to 115.2 kB/s ? Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS ? IPL: XON/XOFF, Intermec Std. Protocol ? USB 2.0
Optional:
PX4i: ? Parallel IEEE 1284 ? Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port) ? Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop, Applicator Interface
PX6i: ? Parallel IEEE 1284 ? Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port) ? Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop, Applicator Interface
Supported Protocols:
PX4i: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and Ipv6.
PX6i: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and Ipv6
SUPPORTED BARCODE SYMBOLOGIES
1-Dimensional:
PX4i: All major 1D symbologies are supported.
PX6i: All major 1D symbologies are supported.
2-Dimensional:
PX4i: All major 2D symbologies are supported.
PX6i: All major 2D symbologies are supported.
